- an S19-file loader for the M68MOD9S12C32 microcontoller.
In my ECE362 class, we're using these M68MOD9S12C32 microcontroller
modules that can be programmed through the serial port, but the only
software I could find to do that was Windows-only.
So, rather than booting back into Windows to work on stuff, I decided
to write this program. You give it an S19 file, and it simply
erases and reloads the program into your MCU.
(licensed under the GPL)
- After extracting, just run make
- You may want to copy the resulting executable to /usr/local/bin for convenience.
- If your serial port is not at /dev/ttyS0, you can change it
to something else in c32load.c.
You may also be interested in Eric Engler's as12 assembler for Linux:

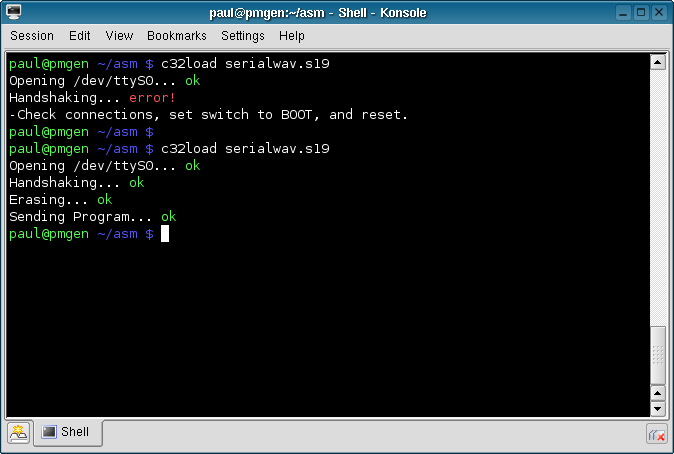

And what webpage would be complete without a screenshot? Well,
probably this one, but I'll post it anyway:
